A long DCC track bus loses voltage to the resistance of the wire, and the far end of the layout ends up running weaker than the near end — sluggish locos, flaky sound, unreliable decoders. The fix is sizing the wire so the round-trip drop stays under about 3% of bus voltage. This free one-page reference tells you when you're within that budget.

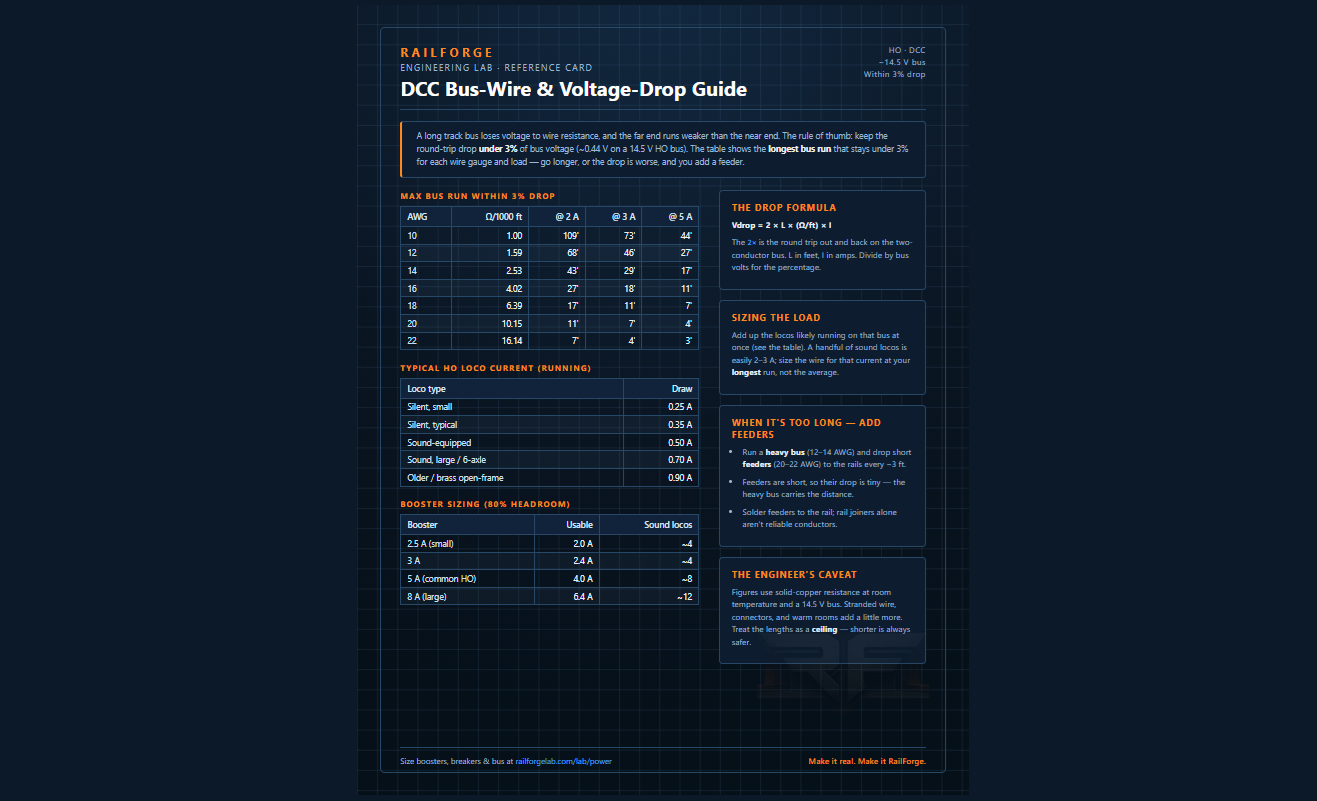

The main table gives the longest bus run that stays under 3% for each common wire gauge (10 through 22 AWG) at 2, 3, and 5 amps, so you can pick a gauge and know your reach at a glance. It includes a typical HO loco current table to size your load, the drop formula itself, and the feeder strategy for when a run is simply too long — a heavy bus with short feeders soldered to the rail every few feet.
The figures assume solid copper at room temperature on a 14.5-volt bus; stranded wire, connectors, and warm rooms add a little, so treat the lengths as a ceiling — shorter is always safer.
